Description

Safely and effectively apply the load from your trailer lighting to the battery and not to the rest of the bike’s electrical system.

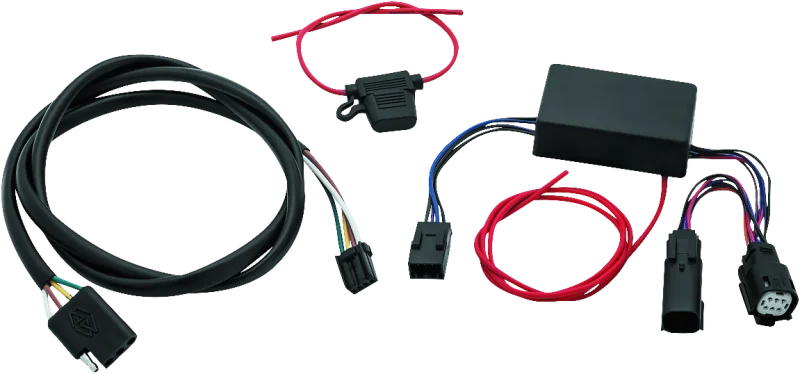

• Includes (1) Relay module 4 wire, (1) 4 Pin trailer plug harness, (1) Inline blade style fuse holder, (1) Blue butt connector 16-14 gauge, (1) Blade fuse 15A, (1) Ring terminal 16-14 american wire gauge, instructions
• Plus, a bonus wire can be connected as needed to provide fused 12 V power to the trailer for compartment lights, or keyless entry systems that are wired independently of the trailer’s essential lighting
• Wire Plus 1 or 4-wire Plus 1 kits provide standard 5-wire output (run, brake, left turn, right turn, ground), or standard 4-wire output (run, left turn/brake, right turn/brake, ground).
• Relay harness utilizes the inputs from the motorcycle to direct power from the battery to the appropriate trailer lighting circuit
• Eliminates overloading stock lighting or accessory circuits

Ensure safe and reliable trailer lighting connections with the Kuryakyn Trailer Wiring Harness, designed specifically for Harley Davidson Touring models from 2014 to 2021. This comprehensive kit allows you to transfer the load from your motorcycle’s electrical system directly to the trailer battery, preventing overloads and protecting your bike’s wiring. The package includes a relay module, a 4-pin trailer plug harness, an inline blade fuse holder, a blue butt connector for 16-14 gauge wire, a 15A blade fuse, a ring terminal, and detailed installation instructions, making setup straightforward and secure.
The harness provides flexible wiring options, supporting both 4-wire and 5-wire configurations, including run, brake, left turn, right turn, and ground circuits. Additionally, an extra fused 12V power wire is included, suitable for powering trailer accessories such as compartment lights or keyless entry systems that operate independently of the main lighting system. This feature offers enhanced convenience and versatility for your trailer setup.
Designed to utilize inputs from your motorcycle to direct power from the battery to the appropriate trailer lighting circuits, the Kuryakyn wiring harness effectively eliminates the risk of overloading your motorcycle’s stock lighting or accessory circuits. Its reliable relay operation ensures consistent power delivery, contributing to safer trailering and longer component life. Compatible with a range of Harley Davidson touring models, this harness simplifies the installation process and enhances your towing experience without compromising your motorcycle’s electrical integrity.

Features:

• Includes relay module, trailer plug harness, fuse holder, and connectors for a complete wiring solution

• Supports both 4-wire and 5-wire trailer lighting configurations for versatile use

• Provides fused 12V power for trailer accessories such as lights and keyless entry systems

• Utilizes motorcycle inputs to direct power from the battery, preventing overloads

• Compatible with Harley Davidson Touring models from 2014 to 2021

Fitment:
Harley Davidson FLHR Road King Base 2014
Harley Davidson FLHR Road King Base 2015
Harley Davidson FLHR Road King Base 2016
Harley Davidson FLHR Road King Base 2017
Harley Davidson FLHR Road King Base 2018
Harley Davidson FLHR Road King Base 2019
Harley Davidson FLHR Road King Base 2020
Harley Davidson FLHR Road King Base 2021
Harley Davidson FLHRC Road King Classic Base 2014
Harley Davidson FLHRC Road King Classic Base 2015
Harley Davidson FLHRC Road King Classic Base 2016
Harley Davidson FLHRC Road King Classic Base 2017
Harley Davidson FLHRC Road King Classic Base 2018
Harley Davidson FLHRC Road King Classic Base 2019
Harley Davidson FLHRSE6 CVO Road King Base 2014
